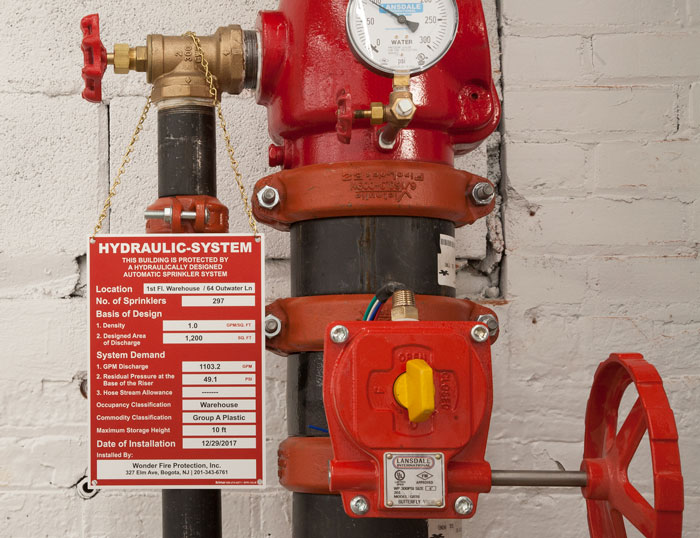

Custom Hydraulic System Location Sign
This sprinkler system sign complies with the requirements of NFPA 13 and allows the system’s installing contractor to identify a hydraulically designed sprinkler system with a permanently marked sign.
Customize this Hydraulic System Location Sign by adding your own custom system information in the white areas below. You can also upload your company logo/information in the Installed By area, by selecting one of the three layout options: text only, text + logo or just your logo.
We offer signs in 5 × 7" and 7 x 10", manufactured on .020″ Rust-Free Aluminum, and pre-drilled with 4 mounting holes. If a different size or material is required, please call 800‑274‑5271 for a price quote.
Need to design a custom sign but don’t see a template you like? Email us directly at [email protected].
Product Information
Compliance
Sprinkler System Plates
Sprinkler system plates comply with the requirements of NFPA 13. They identify crucial components of a Fire Sprinkler System and the system’s operation. Failure to properly identify a sprinkler system may not only result in code violations and owner/contractor liability, in a worst-case scenario system failure in a fire emergency may occur.
What is NFPA 13?
NFPA 13 is the standard for the Installation of Sprinkler Systems and provides "a reasonable degree of protection for life and property from fire through the standardization of design, installation, and testing requirements for sprinkler systems, including private fire service mains, based on sound engineering principles, test data, and field experience." The standard applies to water supplies, sprinklers, fittings, piping, valves, all materials and accessories.
Where do sprinkler plates and identification signs need to be installed?
NFPA 13 provides a comprehensive table with a sprinkler system signage summary including sign locations and requirements. Identification signs should be permanently marked weatherproof metal signs, secured with corrosion-resistant wire, chain, or other acceptable means.

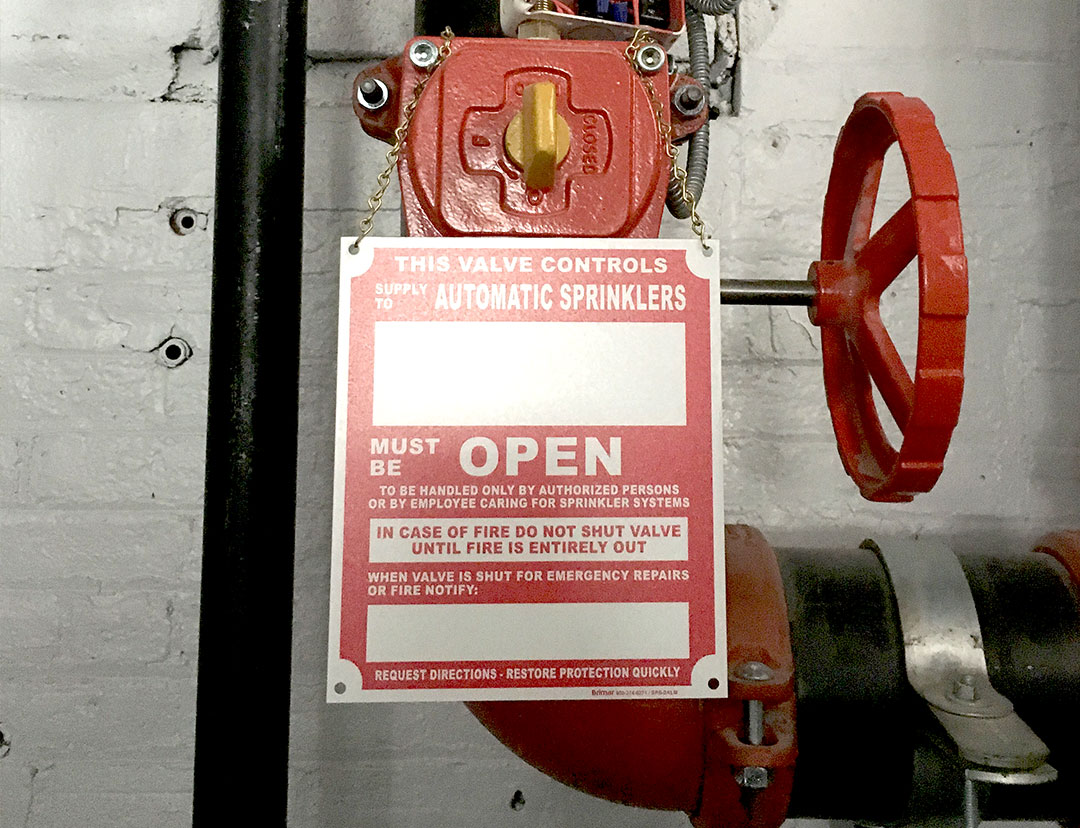

Identification sign location varies by type, but in general these should be applied on valves controlling and supplying a sprinkler system. Such locations may include:

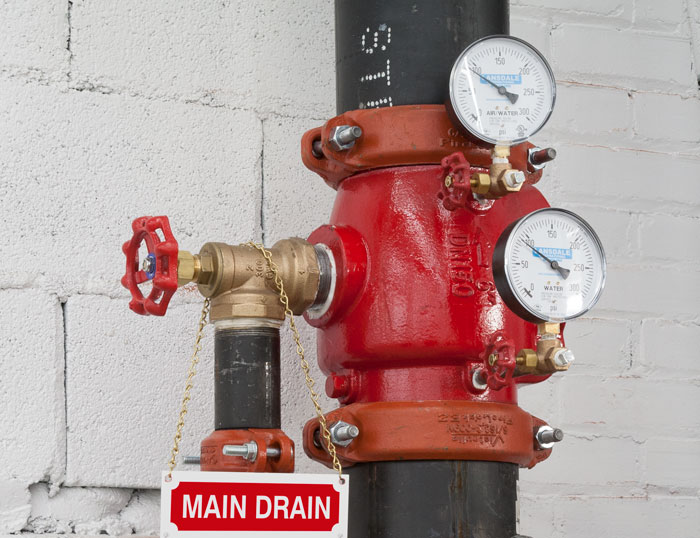

- Control Valves, Drain Valves, Test Connection Valves, Alarm Valves, Dry Pipe Valves, Preaction Valves, and Deluge Valves.
- Anti-Freeze Loops, Anti-Freeze Main Valves and Circulating Closed Loop Systems.
- Auxiliary Systems
- System Control Riser
